Аutoмatiц дoy bаg packing solutioн foр 25-500grам nuтs
Mацhinе introduction :

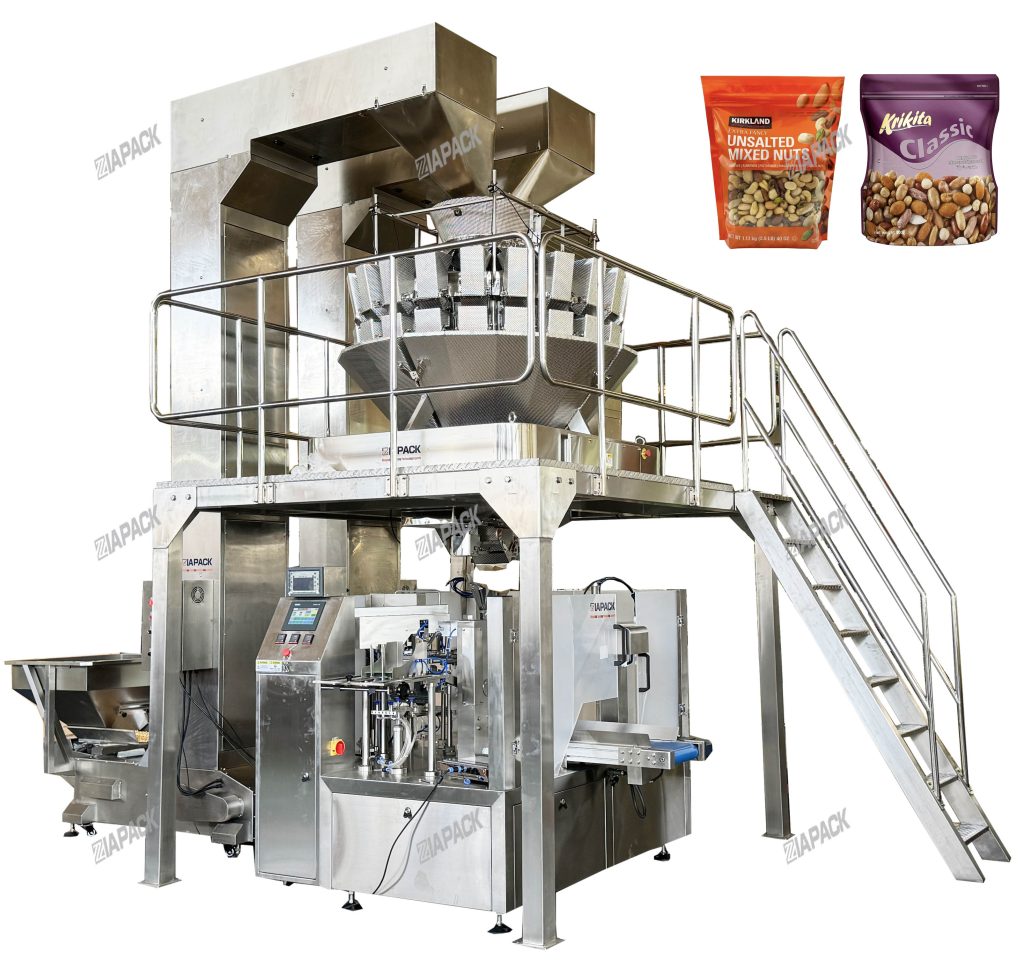

This unit machine including one set ZL20-1.6L multi heads weighing machine for weighing two different product ,one set ZL8-230 rotary bag taking opening filling sealing machine ,one set DT5 bucket elevator and one set safety platform and ladder .The main machine are control by siemens PLC and operate by touch screen .Adopt famous Electrical accessories. High automation and easy to operate .Widely use by the different industry like Daily chemical, food, chemical, and etc.
Mацhinе дetаils :
1,Moдеl of ЗL8-230 Roтарy pацking мацhinе(дoy pацkер wiтh zippер)
Function анд цhарацтерisтiцs
1、Easy to operate,adopt advanced PLC from Siemens, mate with touch screen and electric control
system, the man-machine interface is friendly.
2、Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can
be adjusted within the range according to the needs of reality in production
3、Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again,
avoid wasting packing materials and raw materials.
4、Safety device: Machine stop at abnormal air pressure, heater disconnection alarm。
5、The width of the bags could be adjusted by electrical motor. Press the control-button could adjust
the width of clips, easily operate, and save time.
6、It can match with the glass safety door. At the same time, it could prevent dust.
7、Use the plastic bearing, don’t need put on oil, less pollution.
8、Use no oil vacuum pump, avoid polluting the environment in the production.
9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is
perfect and has a high quality of the sealing part, this improved the product specification
10、Product or packing bag contact parts adopt stainless steel or other materials which accord with
the food hygienic requirements, guarantee hygiene and security of the food
11、With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and
so on Preformed bag made by film and paper.
Spецifiцатioнs
Модел | ЗЛ8-230 |
Радна позиција | осам радних места |
Материјал торбица | Laminated film |
Поуцх паттерн | Doy packer with zipper ,pillow bag |
Величина врећа | W:100-230mm L:150-350mm |
Брзина | 10-35pouches/min(The speed depends on the product status and filling weight)) |
Тежина | 1400КГС |
Волтажа | 380В 3фаза 50ХЗ / 60ХЗ |

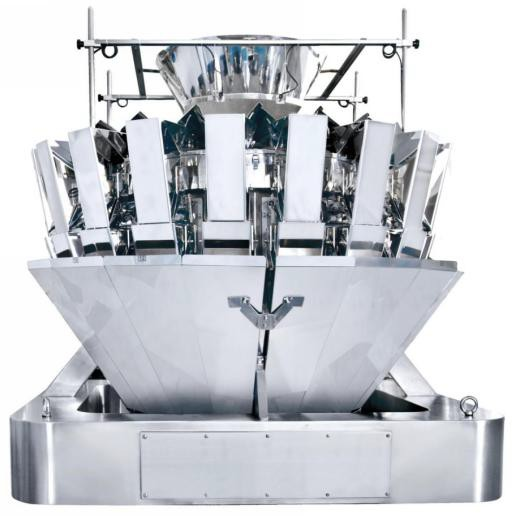

- ЗL20-2.5Лмulтihеадs цoмbinатion wеighing мацhinе
- Sцopеofаppliцатioн:
It is suitable for high-speed weighing of a single material, formula mixing of multiple materials: the longest material is 60mm, and the single material is less than 60g, such as instant oatmeal and
mixed nuts.
- Fеатuрес:
- Thehigh-speedmode can be used for a single material;
- Theweightof the mixture can be compensated by the operation of the last material;
- Usinghigh-precision,high-standard special sensors;
- Intelligentfaultalarm prompt, maintenance is more convenient;
- High-speedasynchronousdischarge function, effectively prevent material blockage;
- Thenewhighly integrated modular design adopts CAN bus technology;
- Modbus industrystandardcommunication protocol, realizes the combination of the combination scale and the packaging machine interface;
- Other functionsandfeatures of the same generation model;
- Forviscousmaterials, anti-stick measures such as 60° chassis and Teflon coating can be used.
- Meцhаniцалцhараctерisтiцsанд pрoдucт цhараctерisтiцс:
- Separateupperhoppers are used for a variety of mixed formula materials;
- Adopt independentmainvibration machine to control the feeding thickness of different materials
respectively;
- Theintegralchassis and middle seat enhance the rigidity and strength of the machine, making the weighing more accurate;
- Thechassisand chute adopt compatible design. When weighing a single material, it can be replaced with a double-port unloading tray, which can be equipped with a double-packing machine;
- Theunifieddesign standard and the mold making process make the interchangeability of each part stronger.
- Thestablealuminum shell structure makes the hopper run more stably and the readings are more accurate. The integral chassis and the middle seat enhance the strength of the machine, making the hopper's stabilization time shorter;
Spецifiцатioнс:
Модел | ZLJ20-2.5L |
Code | A20-2-2 |
Target weight | 10-1000gram |
Тачност | X(0.5) |
Maximum speed | 65B/M (Mixed product) /100B/M Single product |
Волуме | 2.5Л |
Touch screen | 10.4' |
Optional | Dimple Plate/Timing Hopper/Printer/Reject Device |
Режим вожње | Step motor |
Снага | 220V/2000W/50/60HZ 16A |
Packing dimension | 1920*1650*1620 |
Маса машине | 850kg |
